Copper Bonded Model

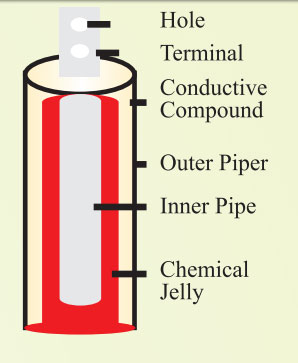

(A). " PIPE-IN-PIPE" TECHNOLOGY
( OuterPipe, Inner pipe are made by Copper Bonded )
This technology concept involves copper bonding system the empty space inside the electrode fully field with a specilly developed crystalline hygroscopic, Conductive mixture sealed. Earthing
Technical Specification
| MODEL |
LEAGHT |
OUTER DIA. |
INNER PIPE |
TERMINAL |
| HG-40 A/B |
3000/2000 |
40mm |
20mm/- |
25X3 |
| HG-50 A/B/S |
3000/2000/1000 |
50mm |
20mm/- |
40X3 |
| HG-65 A/B/S |
3000/2000/ |
65mm |
20mm/- |
40X3 |
| HG-80 A/B/S |
3000/2000 |
80mm |
20mm/- |
50X6 |

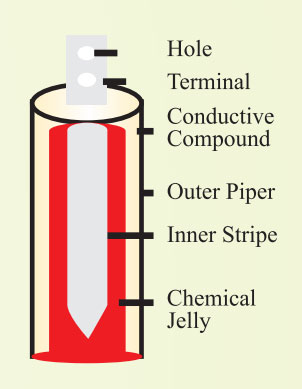

"PIPE WITH PLATE" TECHNOLOGY
(Outer Pipe and Inner plate are made by Copper divided inner pipe four part and structure
made arrow shaped)
| MODEL |
LEAGHT |
OUTER DIA. |
INNER PIPE |
TERMINAL |
| HG-40 A/B |
2000/3000 |
40mm |
25x3 |
25X3 |
| HG-50 A/B |
2000/3000/1000 |
50mm |
25x3 |
40X3 |
| HG-65 A/B |
2000/3000/ |
65mm |
25x3 |
40X3 |
| HG-80 A/B |
2000/3000 |
80mm |
25x3 |
50X6 |

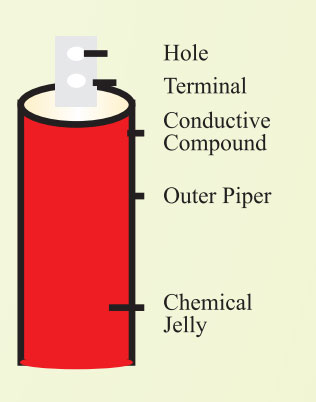

PIPE TECHNOLOGY
(Outer pipe made by Copper )
| MODEL |
LEAGHT |
OUTER DIA. |
TERMINAL |
| HG-40 A/B |
2000/3000 |
40mm |
25X3 |
| HG-50 A/B |
2000/3000/1000 |
50mm |
40X3 |
| HG-65 A/B |
2000/3000 |
65mm |
40X3 |
| HG-80 A/B |
2000/3000 |
80mm |
50X6 |
